B103ZN, Strut Angle Fitting

B103ZN, Strut Angle Fitting – Electrical Distributor and Lighting Solutions Component

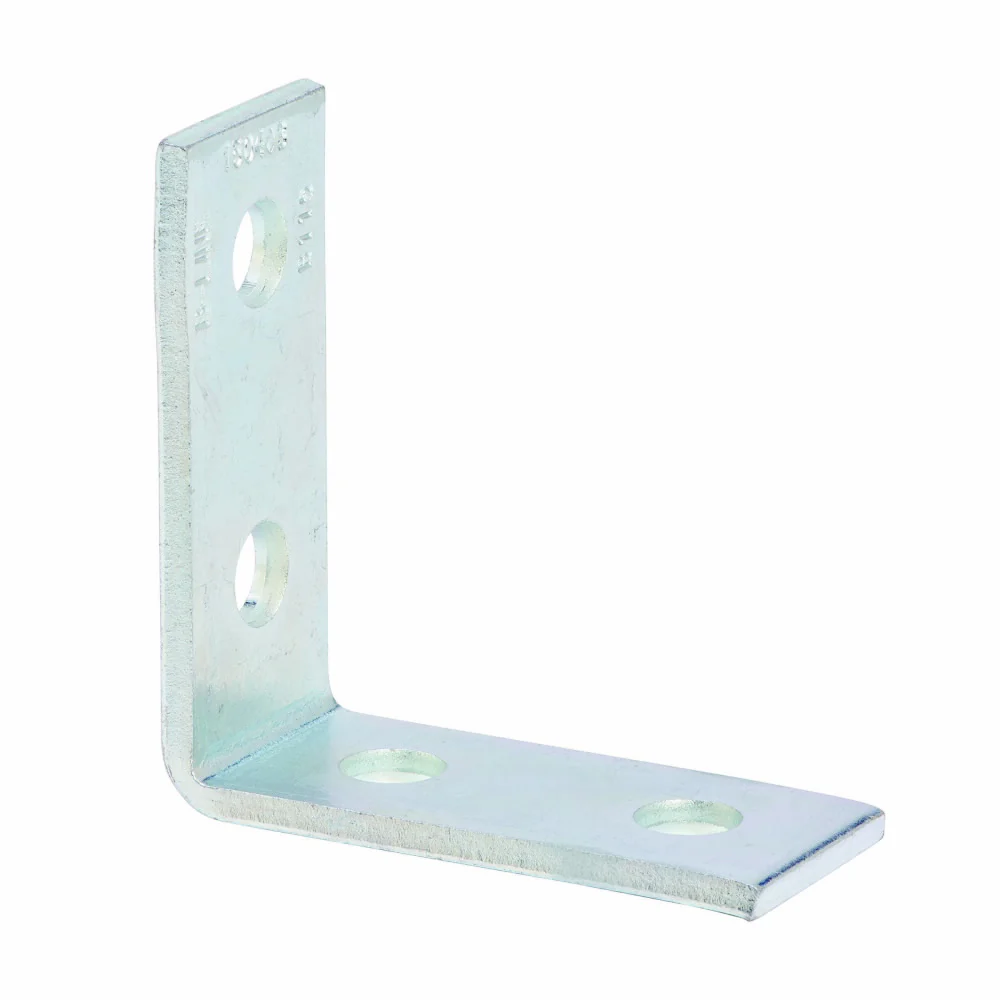

The B103ZN Strut Angle Fitting is a 90-degree, pre-assembled corner fitting designed for use in strut framing systems. Manufactured by B-Line, this component is essential for electrical distributors, lighting solutions, wire and cable management, and switchgear supplier applications, providing robust and reliable structural support for channel systems. It is suitable for securing and joining strut channels at right angles, ensuring stable construction in industrial and commercial electrical installations.

Specifications

• Type: 90 Degree Corner, Pre-Assembled
• Number of Sides: 2
• Number of Holes: 3
• Hole/Slot Size: 9/16 Inch Diameter
• Dimensions: 4.12 Inch Length x 1.62 Inch Width x 4.12 Inch Height
• Thickness: 7/32 Inch
• Channel Width Compatibility: 1-5/8 Inch
• Hole Spacing: 13/16 Inch from End, 1-7/8 Inch Center to Center
• Material: Carbon Steel (Hot Rolled, Pickled and Oiled)
• Finish: Electroplated Zinc (Zinc Electroplated)
• Weight: 0.5460 lbs per unit (56 lbs per 100 pieces)
• Manufacturer: B-Line
• Manufacturer Part Number: B103ZN

Features

• Pre-assembled fitting for quick and secure installation
• Electroplated zinc finish provides corrosion resistance for durability in various environments
• Compatible with 1-5/8 inch strut channel systems commonly used in electrical and mechanical installations
• Three-hole design allows for strong mechanical fastening and load distribution
• Hot rolled, pickled, and oiled carbon steel ensures high structural integrity and strength
• Standard hole spacing and sizing for compatibility with industry-standard hardware
• Meets ASTM A1018 steel specifications with a minimum yield strength of 33,000 PSI
